ME2000S Automatic Metal Plate Embossing System

1 of 6 Enlarge
  •    Info
  •    Reviews

The ME2000S is a robust and reliable electronic embosser engineered for heavy duty and able to handle large metal plate volumes. ME series supports a wide variety of sizes, shapes, thickness including stainless steel, aluminum, copper and brass. With a 10% increase in production speed, a completely renewed design and new features, the  ME2000S provides an advanced solution that can be integrated into any existing factory or office network.

7” color touchscreen display with high resolution
The ME1000S and ME2000S is equipped with a built-in 7 "WVGA LCD touchscreen display with simple and easy to use icon and buttons. The user can access and manage machine functions through a multi-level menu in an easy and intuitive way.

IoT (Internet of Things) remote access and management
- Web services: The machine set-up and operations can be entirely managed remotely via the web or through the use of VNC (Virtual Networking Computing) client, using a personal computer or other devices connected to the Customer’s network.
- Data transfer: Data import/export and the machine updating can be managed from any device connected to the embosser via Ethernet by using the FTP protocol (file transfer protocol).

USB (type A, type B), Ethernet and WiFi
The ME2000S can be connected to a personal computer, to load data and start production, or to another device, such as keyboard, barcode reader or other if needed.

With the automatic (ME2000S) loading and unloading are really easy. It is equipped with a unique clamp for plates of different dimensions and materials as well as a large selection of fonts. Once embossed, the metal tags can be placed in an external collection tray via a side eject mechanism or stacked in a FIFO output stacker. It is designed for medium to high volume production process.

ME2000S - the most durable Fully Automatic Metal Plate Embossing solution built for today’s tough working environments..

This is the machine that the U.S. military prefers for making dog tags.  Do not confuse with other metal embossers that are really nothing but toys.

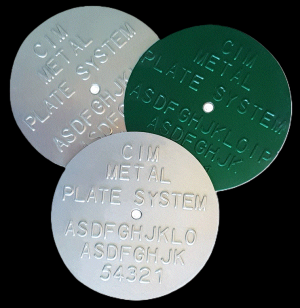

Will emboss a variety of plates other than dog tags. Stainless steel, carbon steel, aluminum. copper and brass. Anything from 0.016” to 0.035” thick.  From 1.5” to 4.5” wide; from 0.826” to 3.5” thick. As you can see, the ME2000 will do the job whether it is military ID tags or automotive body and VIN plates.

A large selection of fonts are available for embossing, debossing, or indenting.



Product Reviews
No Reviews For This Product.
-
+
Price: $39,250.00
